kubernetes-service

| kubernetes •
字数总计 17775 | 阅读时长 44分钟 | 阅读量 605

service :网络负载均衡，vip—>转发至pod ，应用发布，前置条件，节点需要运行proxy.
service分类

1）ClsuterIP :

集群ip，集群内部可用，生产无法访问。

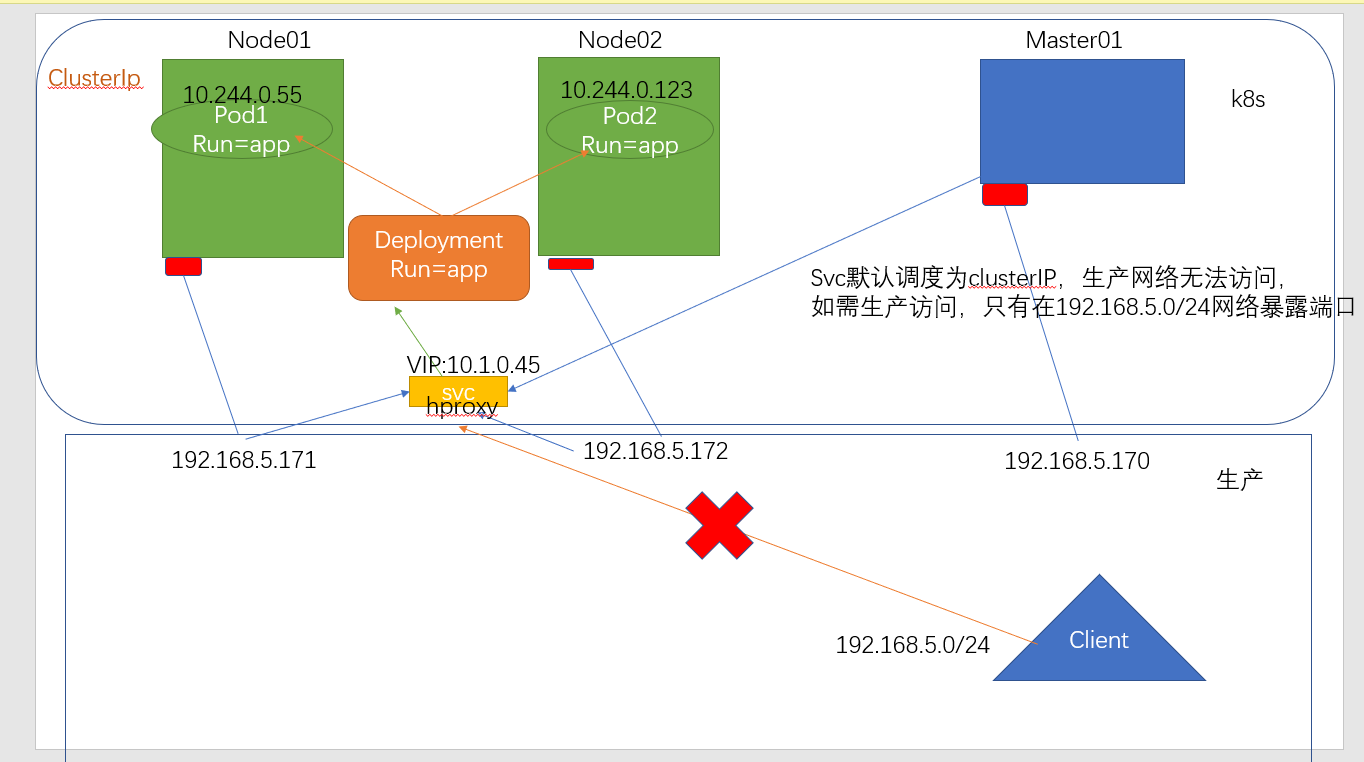

一张图解，希望能看的懂
image-1676624439122
下面实验操作。
创建一个nginx的deployment资源，关联svc

[root@master01 service]# cat deploy.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  creationTimestamp: null
  labels:
    app: my-web
  name: my-web
spec:
  replicas: 2
  selector:
    matchLabels:
      app: app
  strategy: {}
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: app
    spec:
      containers:
      - image: nginx
        imagePullPolicy: IfNotPresent
        name: app
        resources:
          requests:
            cpu: 400m
status: {}

验证

[root@master01 service]# kubectl get pods -o wide
NAME                      READY   STATUS    RESTARTS   AGE   IP               NODE     NOMINATED NODE   READINESS GATES
my-web-7d5ccb86d7-5b672   1/1     Running   0          9s    10.244.196.141   node01   <none>           <none>
my-web-7d5ccb86d7-6m4vb   1/1     Running   0          9s    10.244.140.80    node02   <none>           <none>
[root@master01 service]# kubectl describe deployments.apps my-web
Name:                   my-web
Namespace:              default
CreationTimestamp:      Fri, 17 Feb 2023 17:03:39 +0800
Labels:                 app=my-web
Annotations:            deployment.kubernetes.io/revision: 1
Selector:               app=app
Replicas:               2 desired | 2 updated | 2 total | 2 available | 0 unavailable
StrategyType:           RollingUpdate
MinReadySeconds:        0
RollingUpdateStrategy:  25% max unavailable, 25% max surge
Pod Template:
  Labels:  app=app
  Containers:
   app:
    Image:      nginx
    Port:       <none>
    Host Port:  <none>
    Requests:
      cpu:        400m
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Conditions:
  Type           Status  Reason
  ----           ------  ------
  Available      True    MinimumReplicasAvailable
  Progressing    True    NewReplicaSetAvailable
OldReplicaSets:  <none>
NewReplicaSet:   my-web-7d5ccb86d7 (2/2 replicas created)
Events:
  Type    Reason             Age   From                   Message
  ----    ------             ----  ----                   -------
  Normal  ScalingReplicaSet  19s   deployment-controller  Scaled up replica set my-web-7d5ccb86d7 to 2

创建service

[root@master01 service]# kubectl expose  deployment my-web  --port=80 --target-port=80 --dry-run=client -o yaml >server.yaml
[root@master01 service]# cat server.yaml
apiVersion: v1
kind: Service
metadata:
  creationTimestamp: null
  labels:
    app: my-web
  name: my-web
spec:
  ports:
  - port: 80   #外部端口
    protocol: TCP
    targetPort: 80  #pod内部端口
  selector:
    app: app
status:
  loadBalancer: {}
[root@master01 service]# kubectl create  -f server.yaml
service/my-web created
[root@master01 service]# kubectl get svc
NAME         TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.1.0.1      <none>        443/TCP   8d
my-web       ClusterIP   10.1.92.149   <none>        80/TCP    4s

验证：

[root@master01 service]# kubectl get pods -o wide
NAME                      READY   STATUS    RESTARTS   AGE     IP               NODE     NOMINATED NODE   READINESS GATES
my-web-7d5ccb86d7-5b672   1/1     Running   0          5m15s   10.244.196.141   node01   <none>           <none>
my-web-7d5ccb86d7-6m4vb   1/1     Running   0          5m15s   10.244.140.80    node02   <none>           <none>
[root@master01 service]# kubectl get svc
NAME         TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.1.0.1      <none>        443/TCP   8d
my-web       ClusterIP   10.1.92.149   <none>        80/TCP    64s
[root@master01 service]# curl 10.1.92.149
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

负载均衡

[root@master01 service]# kubectl exec  -ti my-web-7d5ccb86d7-5b672  -- /bin/bash
root@my-web-7d5ccb86d7-5b672:/# echo "web1" >/usr/share/nginx/html/index.html
root@my-web-7d5ccb86d7-5b672:/# exit
exit
[root@master01 service]# kubectl exec  -ti my-web-7d5ccb86d7-6m4vb  -- /bin/bash
root@my-web-7d5ccb86d7-6m4vb:/# echo "web2" >/usr/share/nginx/html/index.html
root@my-web-7d5ccb86d7-6m4vb:/# exit
exit
[root@master01 service]# curl 10.1.92.149
web1
[root@master01 service]# curl 10.1.92.149
web2
[root@master01 service]# curl 10.1.92.149
web1
[root@master01 service]# curl 10.1.92.149
web2

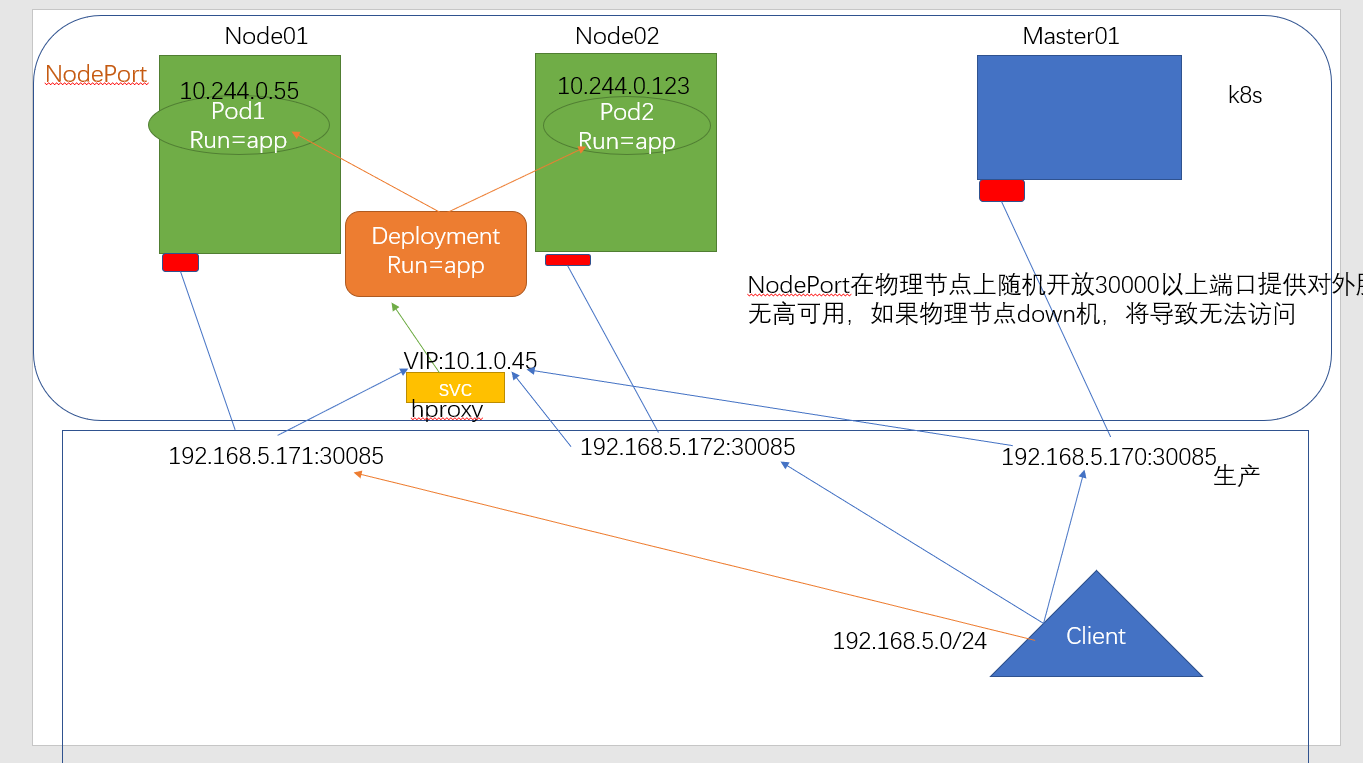

2）NodePort

在物理节点上开启端口，端口访问为30000以上，，节点无高可用，节点关闭，客户端无法访问
image-1676625746108

[root@master01 ~]# kubectl edit service my-web
service/my-web edited



  - port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: app
  sessionAffinity: None
  type: NodePort


  [root@master01 ~]# kubectl get svc
NAME         TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)        AGE
kubernetes   ClusterIP   10.1.0.1      <none>        443/TCP        8d
my-web       NodePort    10.1.92.149   <none>        80:30085/TCP   7m41s
  [root@master01 ~]# kubectl get svc
NAME         TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)        AGE
kubernetes   ClusterIP   10.1.0.1      <none>        443/TCP        8d
my-web       NodePort    10.1.92.149   <none>        80:30085/TCP   7m41s
[root@master01 ~]#

[root@master01 ~]# curl 192.168.5.170:30085
web1
[root@master01 ~]# curl 192.168.5.170:30085
web2
[root@master01 ~]# curl 192.168.5.171:30085
web1
[root@master01 ~]# curl 192.168.5.172:30085
web1

3）loadbalancer

可以在前面加一个LB负载至后端，客户端访问就不访问某一个节点。客户端访问虚拟ip,。
在k8s内部实现lb
可支持多种应用，一个ip对应一个service，（tcp,udp,http,https,都支持）
每个svc都需关联一个生产ip(成本较高)

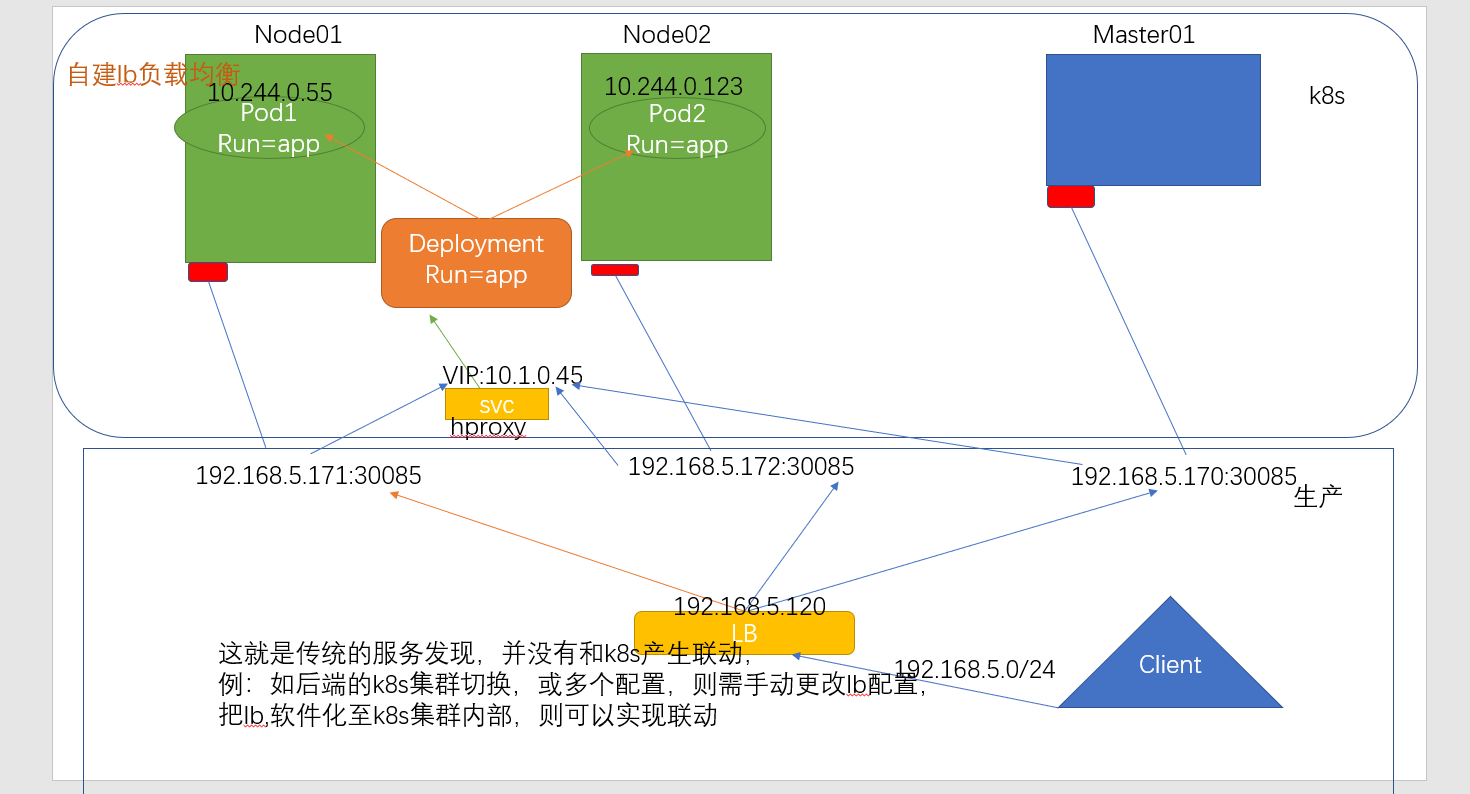

传统企业网：
image-1676861241368

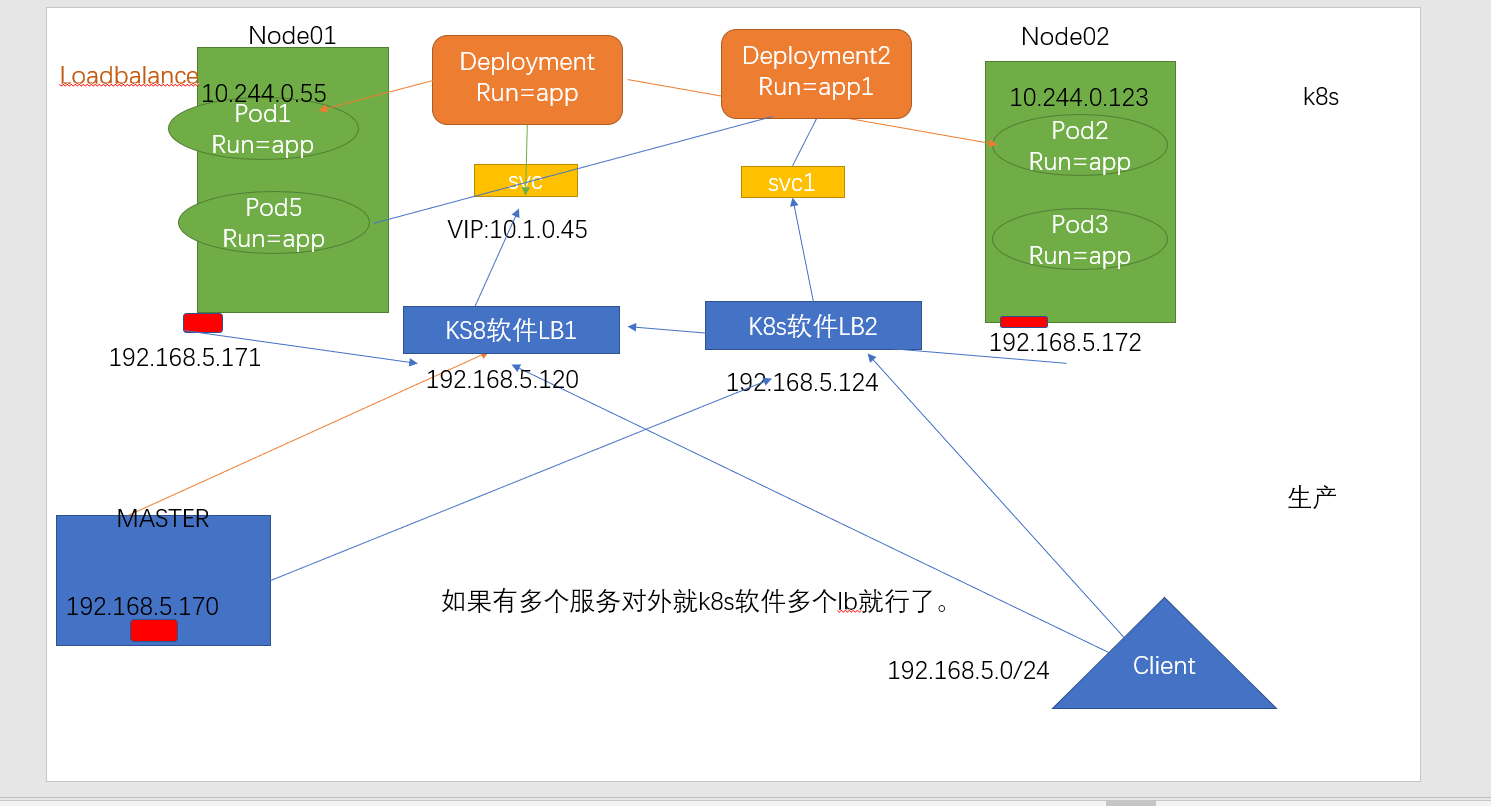

k8s软件lb：不是k8s原生支持，需手动部署
image-1676861822935
部署附加功能 loadbalancer
下载地址GitHub
还有其他部署方式网上
部署metallb
微信公众号
csdn
metallb
测试

[root@master01 metallb]# kubectl edit svc my-web
service/my-web edited
[root@master01 metallb]# kubectl get svc
NAME         TYPE           CLUSTER-IP    EXTERNAL-IP     PORT(S)        AGE
kubernetes   ClusterIP      10.1.0.1      <none>          443/TCP        10d
my-web       LoadBalancer   10.1.92.149   192.168.5.180   80:30085/TCP   2d18h
[root@master01 ~]# curl 192.168.5.180
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

4）ingress

基于nginx的反向代理。支持基于URL地址进行请求转发，只支持http或https应用，要求有域名解析。dns支持
Ingress 公开从集群外部到集群内服务的 HTTP 和 HTTPS 路由。 流量路由由 Ingress 资源上定义的规则控制。，官网写的很清楚，就是说你访问我的ingress-svc,由它定义的规则来控制访问结果。role

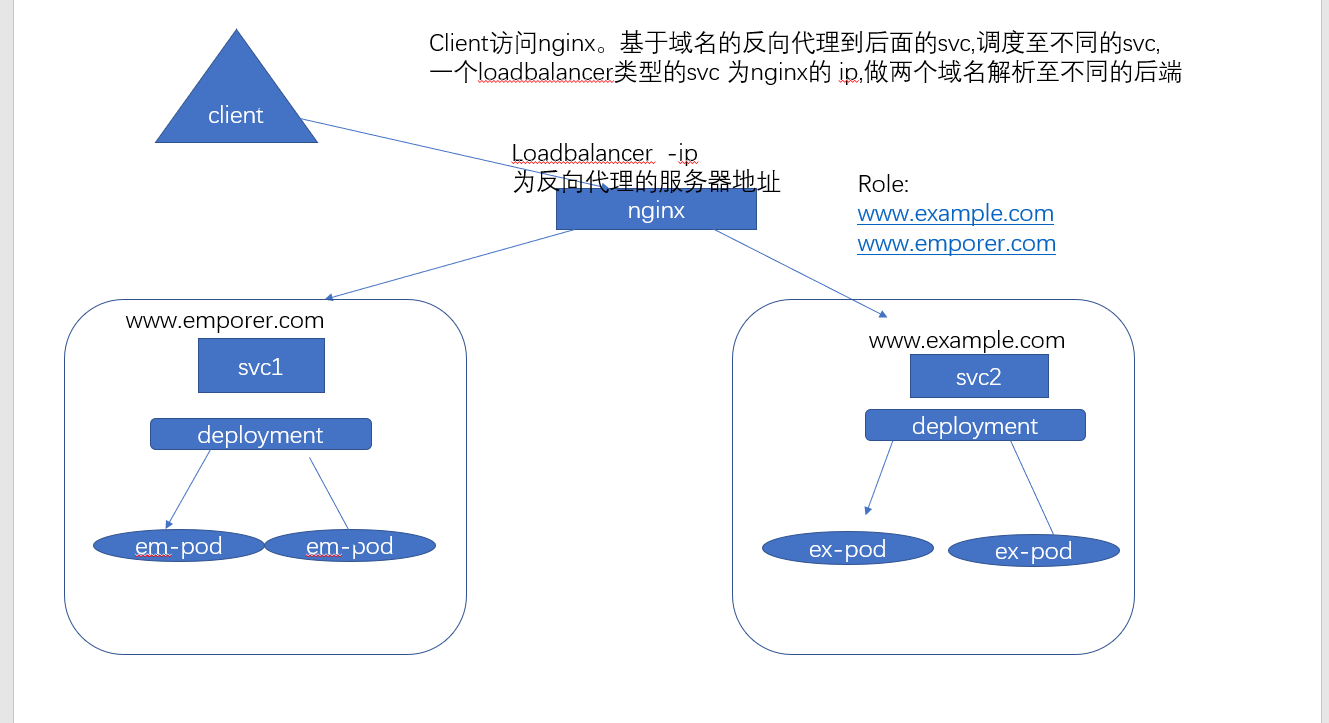

图解
image-1677479807767
部署参考：
ingress-nginx
掘金掘金
博客园：博客园
csdn:csdn
csdn
找一个部署。。
网上教程一堆。。
部署完毕

[root@master01 ~]# kubectl get svc -n ingress-nginx
NAME                                 TYPE           CLUSTER-IP    EXTERNAL-IP     PORT(S)                      AGE
ingress-nginx-controller             LoadBalancer   10.1.47.11    192.168.5.180   80:31124/TCP,443:30551/TCP   4h3m
ingress-nginx-controller-admission   ClusterIP      10.1.193.45   <none>          443/TCP                      4h3m

创建两个deployment关联及其svc ,验证一波
nginx-tomcat.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: ng-dep
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx
        ports:
        - containerPort: 80
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: tom-dep
spec:
  replicas: 2
  selector:
    matchLabels:
      app: tomcat
  template:
    metadata:
      labels:
        app: tomcat
    spec:
      containers:
      - name: tomcat
        image: tomcat:8.5-jre10-slim
        ports:
        - containerPort: 8080

创建deployment

[root@master01 ingressv1.3.0]# kubectl apply -f tomcat-nginx.yaml
[root@master01 ingressv1.3.0]# kubectl get deployments.apps
NAME      READY   UP-TO-DATE   AVAILABLE   AGE
ng-dep    2/2     2            2           44s
tom-dep   2/2     2            2           44s

创建svc 分别关联两个deployment
svc.yaml

apiVersion: v1
kind: Service
metadata:
  creationTimestamp: null
  name: nginx-svc
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: nginx
---
apiVersion: v1
kind: Service
metadata:
  creationTimestamp: null
  name: tomcat-svc
spec:
  ports:
  - port: 8080[root@master01 ingressv1.3.0]# kubectl get svc
NAME         TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
kubernetes   ClusterIP   10.1.0.1       <none>        443/TCP    17d
nginx-svc    ClusterIP   10.1.122.129   <none>        80/TCP     56s
tomcat-svc   ClusterIP   10.1.177.93    <none>        8080/TCP   56s
    protocol: TCP
    targetPort: 8080
  selector:
    app: tomcat

创建svc

[root@master01 ingressv1.3.0]# kubectl apply  -f tomcat-svc.yaml
service/nginx-svc created
service/tomcat-svc created
[root@master01 ingressv1.3.0]# kubectl get svc
NAME         TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
kubernetes   ClusterIP   10.1.0.1       <none>        443/TCP    17d
nginx-svc    ClusterIP   10.1.122.129   <none>        80/TCP     56s
tomcat-svc   ClusterIP   10.1.177.93    <none>        8080/TCP   56s

测试下svc

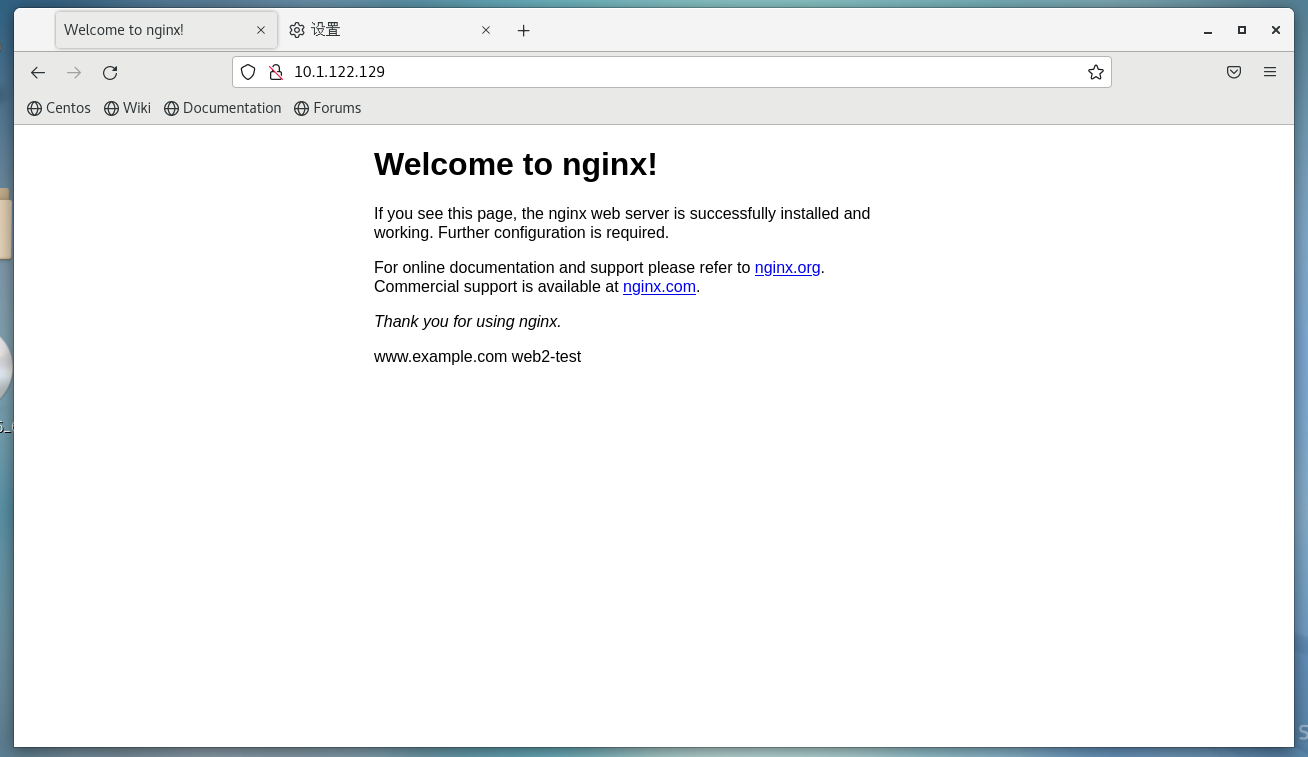

nginx
[root@master01 ingressv1.3.0]# curl 10.1.122.129
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>


tomcat

[root@master01 ingressv1.3.0]# curl 10.1.177.93:8080



<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="UTF-8" />
        <title>Apache Tomcat/8.5.35</title>
        <link href="favicon.ico" rel="icon" type="image/x-icon" />
        <link href="favicon.ico" rel="shortcut icon" type="image/x-icon" />
        <link href="tomcat.css" rel="stylesheet" type="text/css" />
    </head>

    <body>
        <div id="wrapper">
            <div id="navigation" class="curved container">
                <span id="nav-home"><a href="https://tomcat.apache.org/">Home</a></span>
                <span id="nav-hosts"><a href="/docs/">Documentation</a></span>
                <span id="nav-config"><a href="/docs/config/">Configuration</a></span>

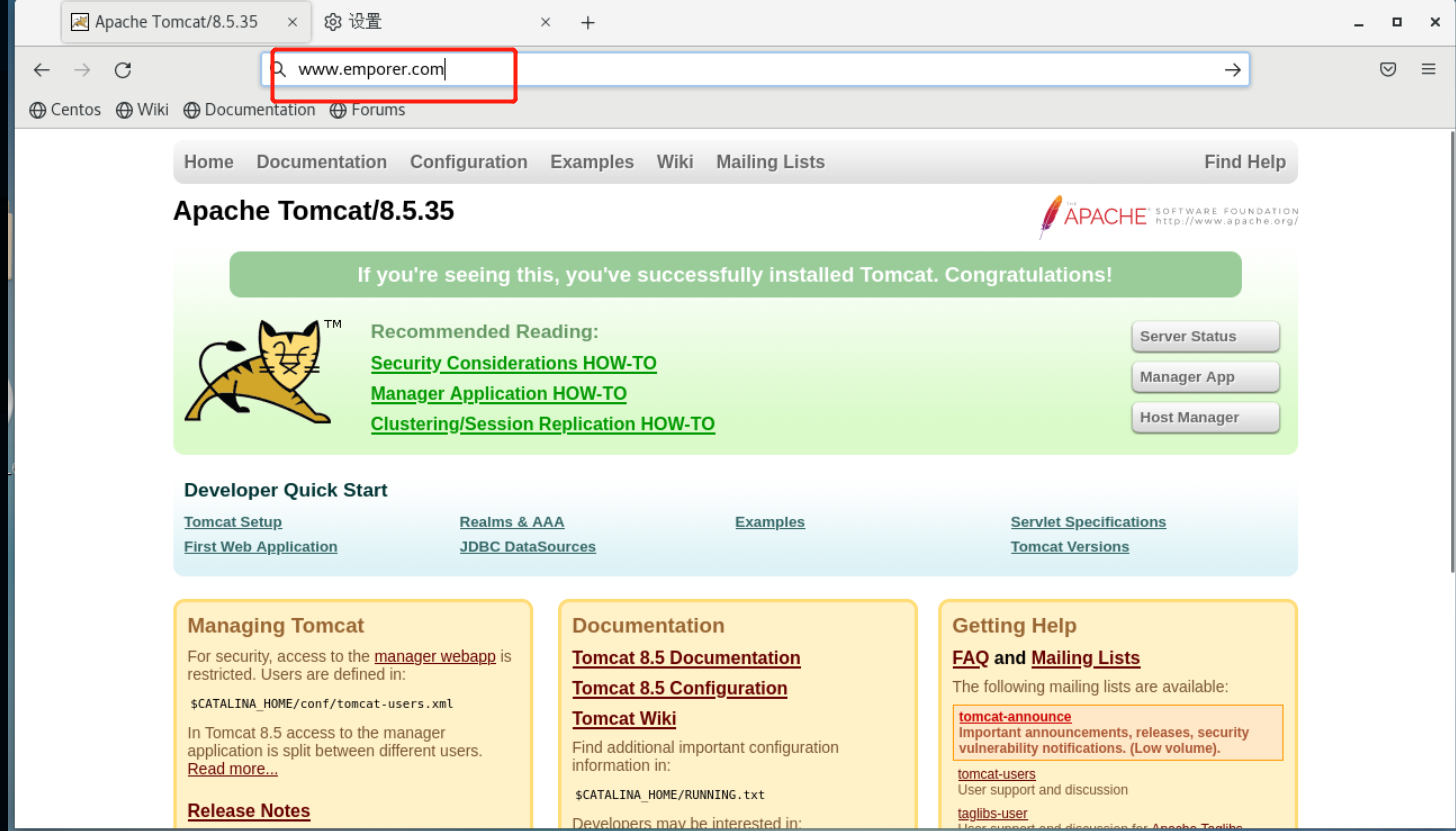

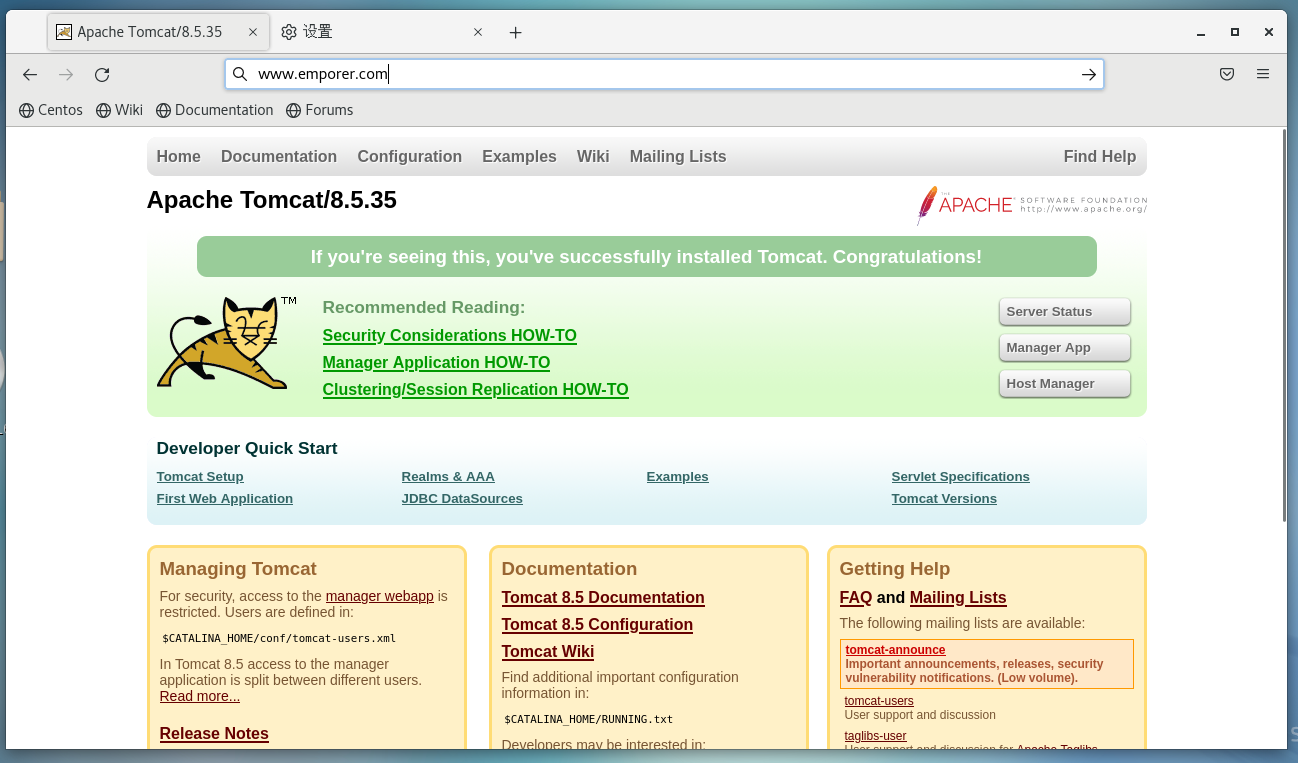

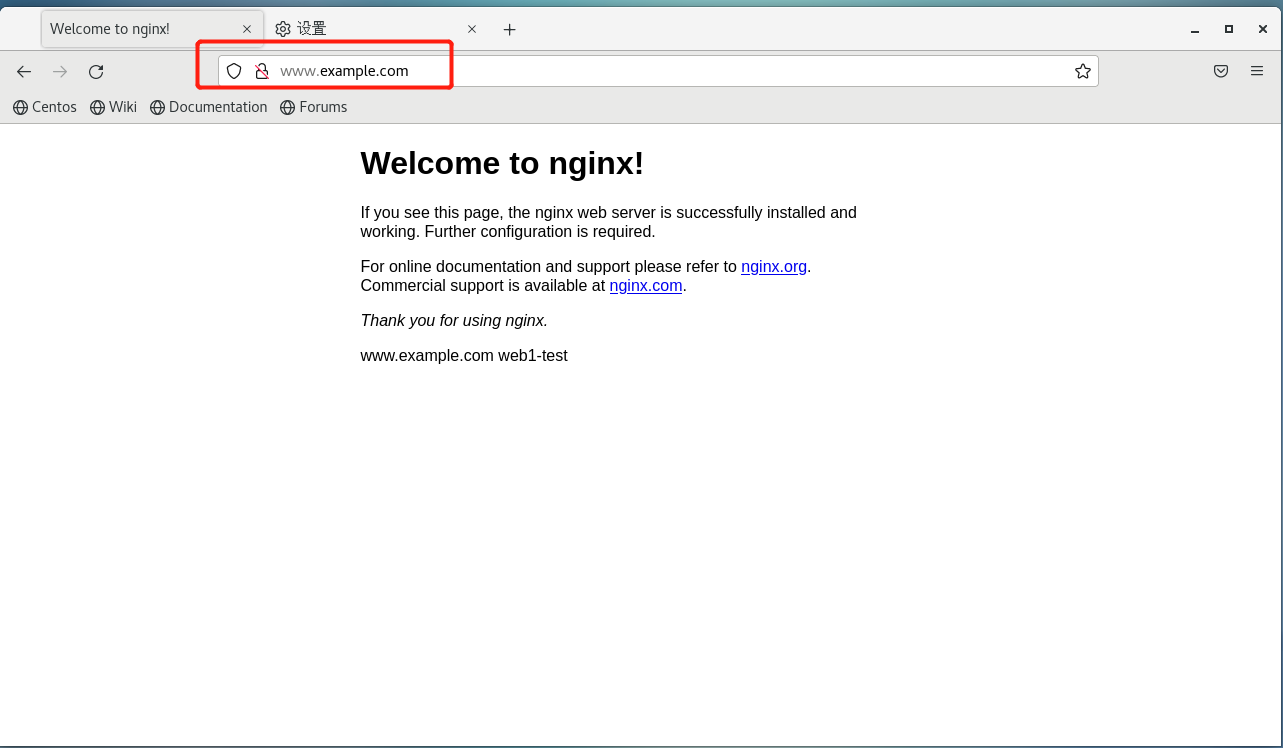

测试：

[root@master01 ingressv1.3.0]# kubectl get svc
NAME         TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
kubernetes   ClusterIP   10.1.0.1       <none>        443/TCP    17d
nginx-svc    ClusterIP   10.1.122.129   <none>        80/TCP     15m
tomcat-svc   ClusterIP   10.1.177.93    <none>        8080/TCP   15m

tomcat
image-1677481548414
nginx
image-1677481576766

创建ingress资源
ingress.yaml

[root@master01 ingressv1.3.0]# cat ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  rules:
  - host: "www.example.com"
    http:
      paths:
      - pathType: Prefix
        path: /
        backend:
          service:
            name: nginx-svc
            port:
              number: 80
  - host: "www.emporer.com"
    http:
      paths:
      - pathType: Prefix
        path: /
        backend:
          service:
            name: tomcat-svc
            port:
              number: 8080
  ingressClassName: nginx
  [root@master01 ingressv1.3.0]# kubectl  apply  -f ingress.yaml
ingress.networking.k8s.io/ingress configured

添加两条域名解析至hosts

[root@master01 ingressv1.3.0]# cat /etc/hosts
192.168.5.170 master01
192.168.5.171 node01
192.168.5.172 node02
192.168.5.180 www.example.com
192.168.5.180 www.emporer.com

访问测试。访问不同的域名调度至不同的网页,且不用跟端口。
www.emporer.com
image-1677482100113image-1677482024552
www.example.com
image-1677482082913

文章作者： emporer
本文链接：
版权声明： 本站所有文章除特别声明外，均采用 CC BY-NC-SA 4.0 许可协议。转载请注明来自 Emporer-Linux！
kubernetes 服务发布 kubernetes
喜欢就支持一下吧
